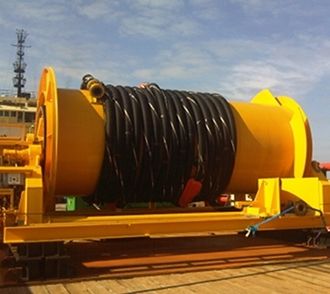

75 Te Large Spooler: Wide Drum and Compact Drum
This 75 tonne unit will also be used for the same applications as the AJ machine. Similar in size, with a bigger core diameter. It is available in two sizes SR002 – wide drum, and SR003 – compact drum.
Dimensions: length 8.6m x Width 3.8m x height 4.4m
weight: 28te c/w 75te lifting beam.
Line Pull: 15te
Core Radius:1.5m
Load Capacity: 75te 1000m 6″ hose
Road Transportable
Spooler
Projects
Location: Tunisia Client: PA Resources Water Depth: 80m No. of Risers: 1 + Umbilical Seastate: Hs = 7m
Location: Nigeria Client: ABC Maritime Water Depth: 65m Tanker: 250,000 DWT Seastate: Hs = 5m
Location: India Client: ONGC Mooring Systems installed a 400mt high pressure riser offshore India. Due to the nature of...
Equipment Hire
The mooring node is for connecting the three legs for the TCMS mooring, and the chafe chain on the upper lug of the node. Built by Vicinay in Spain, the node weights 12 tonne and fits 130mm Shackles .
Mooring systems Limited has presently 20,000 ft of 76mm anchor chain grade R4 new and unused in stock. Manufactured by Vicinay in Spain this chain is available for rental or purchase.
Recent Projects
Client : Masirah Oil Location : Oman Services provided : Supply of 750mt of 6” Saturn Manuli hose , installation procedures , installation equipment , and installation team .
Client: Sarost Location: Tunisia Services provided: Installation equipment, including 400te mobile carousel , tensioner , loading arm , and turntable . Full rigging team , and carousel technicians .
Client : Kris Energy Services provided : Project engineering / client rep .
